COLLAR & CUFF PRESS UHC 8

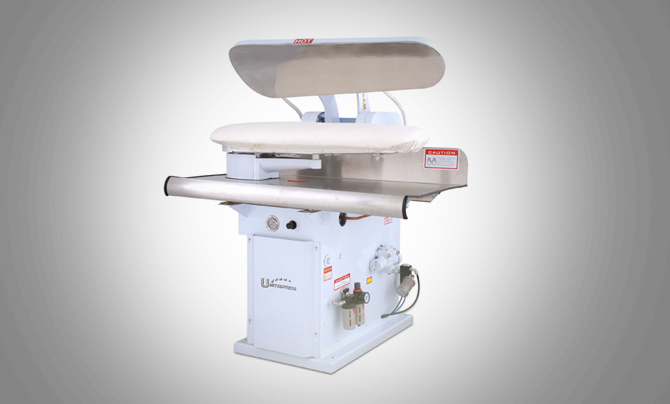

Collar & Cuff Press UHC 8

Collar & Cuff press specifically designed to give a professional finish to shirt collars and cuffs. In a single press, it can finish the shirt collar and two cuffs, and a subsequent press will finish the shirt yoke. The wide opening bucks, facilitate both the pressing operation and the use of the steam iron.



It will increase productivity due to its specialization in pressing shirt collars, cuffs and yokes that no other press will be able to perform and yield equivalent results. The head of the press may be controlled by two buttons which should be pushed simultaneously.



The presses are available either in completely self-contained with built-in electric and automatic steam boiler or for central supplies operation.Two Cylinder Design – one cylinder closes press head at consistent speeds and a second cylinder applies desired pressure.

Technical Specification

MODELUHC-8
Width of Buck (mm)809
Height of Buck (mm)180
Steam Consumption (Kg/hr)15.4
Steam inlet1/2″ NPT
Steam outlet1/2″ NPT
Vacuum outlet1 1/4″ NPT
Steam pressure6.9 Bar
Air pressure5.5 bar
Compressed Air Consumption (cu.ft/cycle)1.04
Dimension (WDH) mm1100 x 1060 x 1220
Net weight (Kg)315
