GZZ series Dryers are precision-engineered for efficiency, ease of use, and superior drying results. Engineered with properly balanced airflow, heat input and cylinder volume, our driers deliver high-quality results and features that dramatically increase laundry production and increases fabric life. Available in Electric & Steam heating modes.

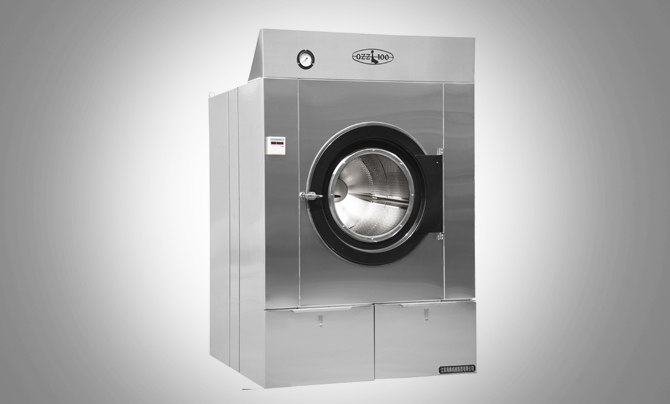

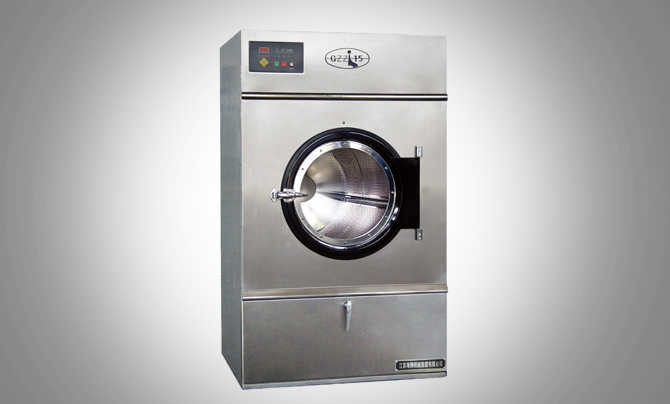

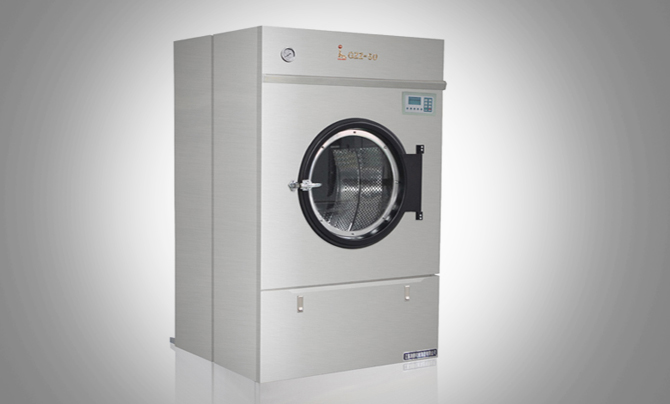

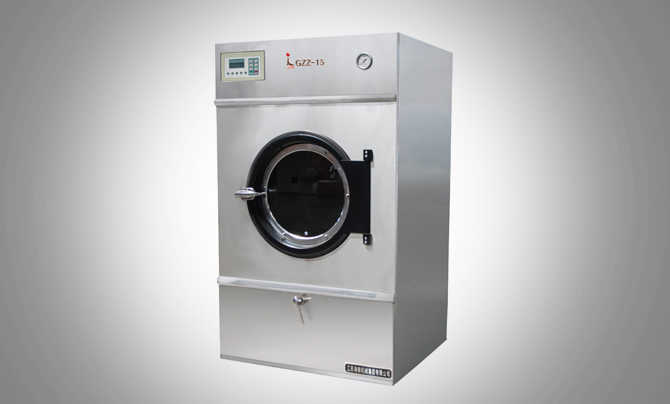

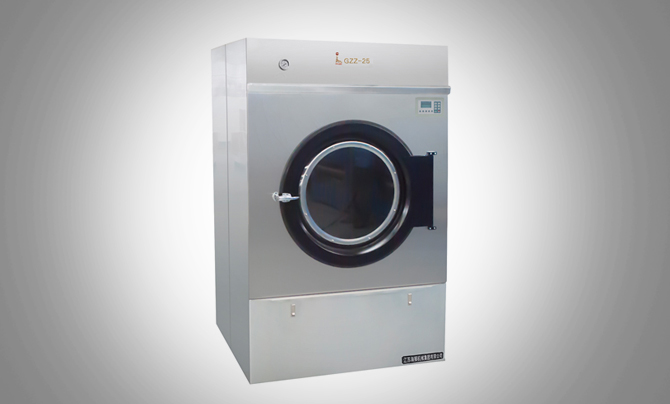

Tumble Dryer
Tumble Dryer
1. Computer Controller
The computer controller is a control centre of a dryer. It consists of transformer, CPU board, LED display board and output relay board. It owns overloading protection function. In case of overloading, all actions will be stopped, the overloading indicator will light on. Temperature, time, programme, reverse drum action on/off and adjustment of cool down for trouble-free operation can be Individually selected.
2.Large Opening
The large diameter of the door opening on our tumble dryers ensures easy loading and unloading. For maximum accessibility, the door opens to nearly 180°. The door is provided with a safety switch that stops the machine when the door is open. The door can be opened any time during operation for safety. While the door gap excesses 50 mm, the machine will stop to ensure the energy is not wasted through the gap.
3.Drum Construction
The drum is made of stainless steel including basket with main shaft. It is a suspension beam type structure between drum and main shaft and supported by two rolling bearings. The drum perforations make sure the fabric is gently handled, lengthening the garments lifetime.
4.Reverse Drum Action
Our Dryers designed to reverse drum action for better results. The drying process is more efficient and offers better uniformity on the garments drying process and avoiding the tangling of the big pieces. The reverse drum action is done through an inverter. This process improving drying efficiency and making finishing easier.
5.Lint Filter
A special & unique feature of our drier is a lint drawer located in front of the exhaust fan. This prevents lint from clogging the fan, which causes damaging vibration. This also eliminates the need for costly external lint collectors and reduces lint fire concerns. The lint filter is efficient and provides a good airflow that reduces the energy consumption.
6.Lower utility Cost
Our Driers achieve the perfect balance between drying temperature, airflow pattern and usable cylinder space for maximum energy efficiency, shortening drying times – and reducing your utility and labour costs.
Technical Specification
| MODEL | GZZ/GDZ-15 | GZZ/GDZ 25 | GZZ/GDZ 50 | GZZ 100 |
|---|---|---|---|---|
| Capacity | 15 | 25 | 50 | 100 |
| Drum (DxL)mm | 780 x 650 | 930 x 800 | 1200 x 946 | 1460 x 1180 |
| Work Cycle Time (mins) | 30 | 30 | 30 | 30 |
| Motor Power (Kw) | 0.55 | 0.75 | 1.5 | 3 |
| Fan Motor (Kw) | 0.37 | 0.75 | 1.5 | 3 |
| Drum Speed (RPM) | 45 | 35 | 32 | 30 |
| Electric Heater (Kw) Elec.Heating | 14.4 | 23.4 | 39 | – |
| Steam Pressure (Mpa) | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 |
| Steam Pipe (DN) mm | 20 | 25 | 25 | 40 |
| Steam Consumption/Cycle (Kg) | 18 | 30 | 60 | 120 |
| Power Consumption – Steam Heating (Kw) | 0.5 | 0.9 | 1.8 | 3.2 |
| Power Consumption – Electric Heating (Kw) | 9 | 15 | 29 | – |
| Dimesion(mm) | 1150 x 870 x 1450 | 1270 x 1023 x 1760 | 1570 x 1265 x 2070 | 1915 x 1610 x 2300 |
| Weight (Kg) | 310 | 450 | 800 | 1600 |
